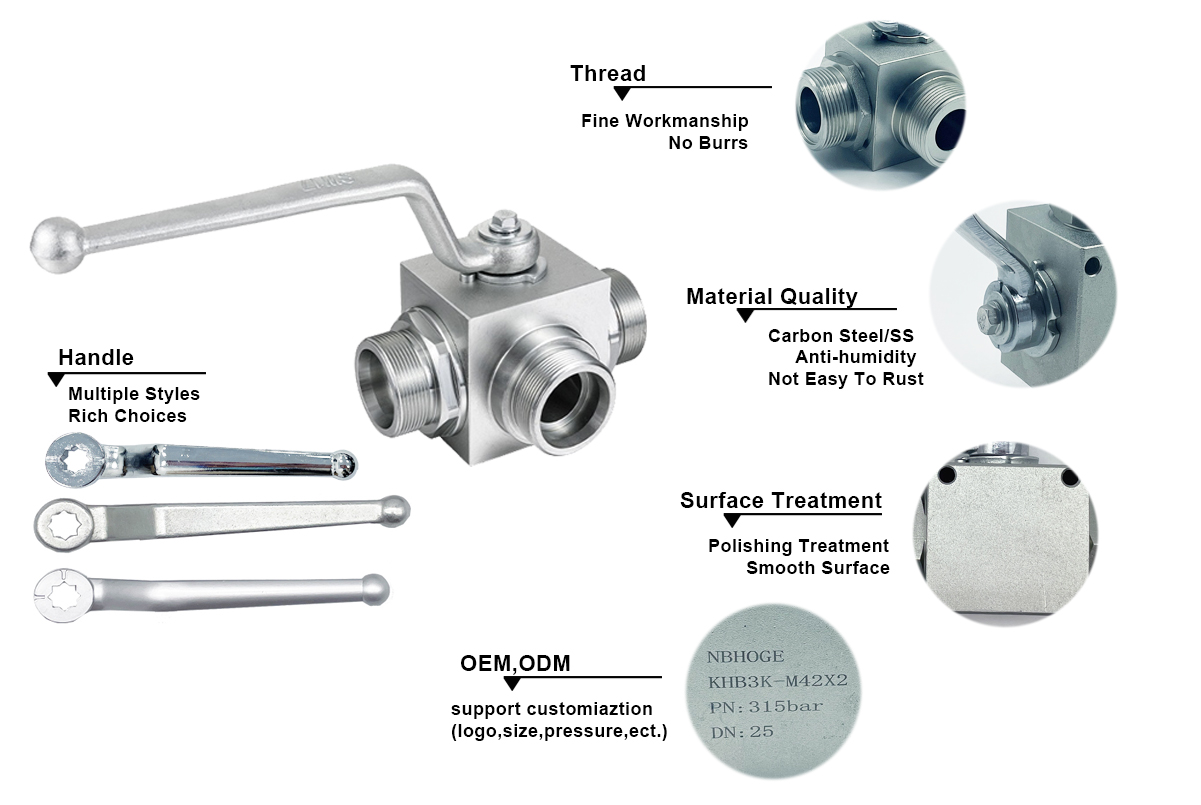

KHB3K High Pressure Hydraulic Ball Valve

Features

Working Temperature:-20℃~+180℃ Package:Carton

Working Medium:Water Oil Gas Warranty:1Year
Customized Support:OEM,ODM Power:Hydraulic
Working Pressure:0-500bar(0-7250psi)
Main Material:Carbon Steel,Stainless steel
Connection Thread :BSPT,NPT,SAE,LR,SR,METRIC
Certificate:ISO9001,ISO14001,CE
After Sales Service Provide:Video Technical Support

Quote Now

Specification

How To Order
KHB3K - G1/2- L - 1 1 1 2 - 04 - *
1 2 3 4 5 6 7 8 9

(1)Product code:KHB3K-Valve block ball valve DN04-50
(2) Thread size or the pipe diameter and connection type
(3)Valve function symbol:see below uses symbol
(4)Valve and joints material:1-Carbon steel 4-Stainless steel
(5)Ball and spindle material control:1-Carbon steel 4-Stainless steel
(6)The seal material:1-POM 4-PTFE 5-PEEK
(7)Joint seal adn control spindle seal: 2-NBR 4-FPM 6-EPDM
(8)Handle Type:
01-Aluminum alloy crank 02-Aluminum alloy straight handle
03-Zinc alloy crank 04-Zinc alloy straight handle
05-Steel crank 06-Steel straight handle
(9)Surface treatment:Default plating blue with zinc
NOTES:Please specify other requirement

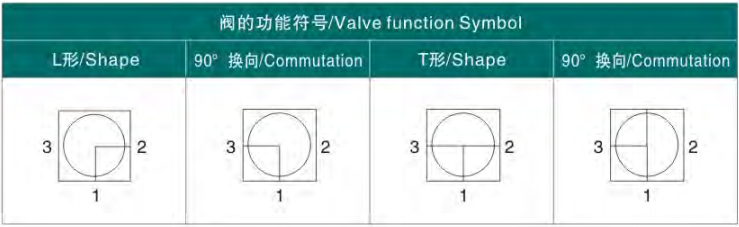

Valve Function
Hydraulic oil just can flow into valve through port"1"and the valve only can be sealed under the two situations:
1)Pressure at the closed port is zero;
2)Pressure at the closed port is lower than at the two open ports.

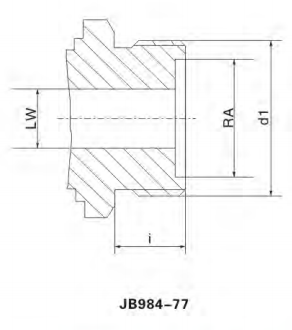

JB987-77 External Thread Seal

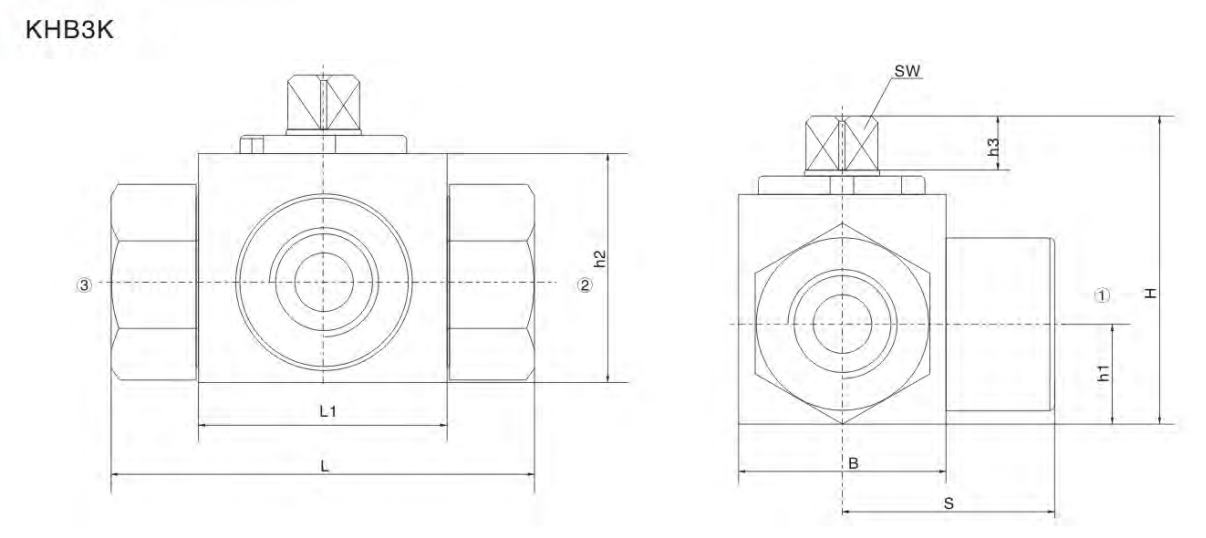

Model	DN	PN	LW	RA	d1	i	L	L1	B	H	h1	h2	h3	SW	S
KHB3K-M12*1.25	4	315	4	8	M12*1.25	9	61	37	28	44.5	13	34	8	9	35
KHB3K-M16*1.5	6	315	6	11	M16*1.5	11	69	37	28	44.5	13	34	8	9	35
KHB3K-M22*1.5	8	315	8	16	M22*1.5	12	76	42	32	52.5	17	40	8	9	38
KHB3K-M27*.15	10	315	10	20	M27*1.5	12	76	42	32	52.5	17	40	8	9	38
KHB3K-M30*1.5	16	315	15	24	M30*1.5	13	84	47	38	63.5	19	43	11	12	42
KHB3K-M36*2	20	315	20	30	M36*2	15	103	60	48	75	24	54	12	12	52
KHB3K-M42*2	25	315	25	35	M42*2	18	116	65	55	82	28.5	61	12	12	58
KHB3K-M52*2	32	315	30	40	M52*2	20	149	84	75	104.5	37.5	84	14	14	72
KHB3K-M60*2	40	315	38	50	M60*2	22	174	91	85	115.5	42.5	95	14	17	79.5
KHB3K-M72*2	50	315	48	60	M72*2	24	178	100	105	133	52.5	112.5	14	17	89

ISO228 Female Thread

Model	DN	PN	LW	d1	i	L	L1	B	H	h1	h2	h3	SW	S
KHB3K-G1/8	4	315	6	G1/8	10	69	37	28	44.5	13	34	8	9	35
KHB3K-G1/4	6	315	6	G1/4	14	69	37	28	44.5	13	34	8	9	35
KHB3K-G3/8	10	315	10	G3/8	14	72	42	32	52.5	17	40	8	9	36
KHB3K-G1/2	13	315	13	G1/2	16	83	48	35	52.5	17	40	8	9	40
KHB3K-G1/2	16	315	15	G1/2	16	83	47	38	63.5	19	43	11	9	42
KHB3K-G3/4	20	315	20	G3/4	18	95	60	48	75	24	54	12	12	49
KHB3K-G1	25	315	25	G1	20.5	113	65	55	82	28.5	61	12	12	56.5
KHB3K-G1 1/4	25/32	315	25	G1 1/4	22	120	65	60	82	28.5	61	12	14	60
KHB3K-G1 1/4	32	315	30	G1 1/4	22	110	84	75	104.5	37.5	84	14	17	55
KHB3K-G1 1/2	40	315	38	G1 1/2	24	130	91	85	115.5	42.5	95	14	17	65
KHB3K-G2	50	315	48	G2	26	140	100	105	133	52.5	112.5	14	17	70

ANSI B1.20.1 NPT Female Thread

Model	DN	PN	LW	d1	i	L	L1	B	H	h1	h2	h3	SW	S
KHB3K-G1/8NPT	4	315	6	1/8NPT	10.5	69	37	28	44.5	13	34	8	9	35
KHB3K-G1/4NPT	6	315	6	1/4NPT	14	69	37	28	44.5	13	34	8	9	35
KHB3K-G3/8NPT	10	315	10	3/8NPT	14	72	42	32	52.5	17	40	8	9	36
KHB3K-G1/2NPT	13	315	13	1/2NPT	17	83	48	35	52.5	17	40	8	9	40
KHB3K-G3/4NPT	20	315	20	3/4NPT	19	95	60	48	75	24	54	12	12	49
KHB3K-G1NPT	25	315	25	1 NPT	22.5	113	65	55	82	28.5	61	12	12	56.5
KHB3K-G1 1/4NPT	25/32	315	25	1 1/4NPT	22.5	120	65	60	82	28.5	61	12	12	60
KHB3K-G1 1/4NPT	32	315	30	1 1/4NPT	25	120	84	75	104.5	37.5	84	14	14	60
KHB3K-G1 1/2NPT	40	315	38	1 1/2NPT	25	130	91	85	115.5	42.5	95	14	17	70
KHB3K-G2NPT	50	315	48	2NPT	30	140	100	105	133	52.2	112.5	14	17	75

SAE J 514 UN/UNF Female Thread

Model	DN	PN	LW	d1	i	L	L1	B	H	h1	h2	h3	SW	S
KHB3K-SAE4	6	315	6	SAE4	12	69	37	28	44.5	13	34	8	9	35
KHB3K-SAE6	10	315	10	SAE6	13	72	42	32	52.5	17	40	8	9	36
KHB3K-SAE8	13	315	13	SAE8	15	83	48	37	52.5	17	40	8	9	40
KHB3K-SAE12	20	315	20	SAE12	20	95	60	48	75	24	54	12	12	49
KHB3K-SAE16	25	315	25	SAE16	20	113	65	55	82	28.5	61	12	12	56.5
KHB3K-SAE20	25/32	315	25	SAE20	20	120	65	60	82	28.5	61	12	12	60
KHB3K-SAE20	32	315	30	SAE20	20	120	84	75	104.5	37.5	84	14	14	60
KHB3K-SAE24	40	315	38	SAE24	20	130	91	85	115.5	42.5	95	14	17	70
KHB3K-SAE32	50	315	48	SAE32	20	140	100	105	133	52.5	112.5	14	17	75

DIN2353 Light Series

Model	DN	PN	LW	RA	d1	i	L	L1	B	H	h1	h2	h3	SW1	S
KHB3K-06LR	4	315	4	6	M12*1.25	10	67	37	28	44.5	13	32	8	9	34.5
KHB3K-08LR	6	315	6	8	M14*1.5	10	67	37	28	44.5	13	32	8	9	34.5
KHB3K-10LR	8	315	8	10	M16*1.5	11	74	42	32	52.5	17	40	8	9	37
KHB3K-12LR	10	315	10	12	M18*1.5	11	74	42	32	52.5	17	40	8	9	37
KHB3K-15LR	13	315	13	15	M22*1.5	12	82	48	37	52.5	17	43	8	9	40
KHB3K-18LR	13	315	13	18	M26*1.5	12	82	48	37	52.5	17	43	8	9	42
KHB3K-18LR	16	315	15	18	M26*1.5	12	82	47	38	63.5	1+	46	11	9	42
KHB3K-22LR	20	315	19	22	M30*2	14	101	60	48	75	24	54	12	12	52
KHB3K-28LR	25	315	25	28	M36*2	14	108	65	55	82	28.5	61	12	12	54
KHB3K-35LR	25/32	315	25	35	M45*2	16	112	65	60	82	28.5	64	12	14	56

DIN2353 Heavy Series

Model	DN	PN	LW	RA	d1	i	L	L1	B	H	h1	h2	h3	SW1	S
KHB3K-08SR	4	315	5	8	M16*1.5	12	73	37	28	44.5	13	34	8	9	37
KHB3K-10SR	6	315	6	10	M18*1.5	12	73	37	28	44.5	13	34	8	9	37
KHB3K-12SR	8	315	8	12	M20*1.5	12	76	42	32	52.5	17	40	8	9	38
KHB3K-14SR	10	315	10	14	M22*1.5	14	80	42	32	52.5	17	40	8	9	40
KHB3K-16SR	13	315	13	16	M24*1.5	14	86	48	35	52.5	17	40	8	9	43.5
KHB3K-20SR	13	315	13	20	M30*2	16	90	48	35	52.2	17	40	8	9	45.5
KHB3K-20SR	16	315	15	22	M30*2	16	90	47	38	63.5	19	46	11	12	45.5
KHB3K-25SR	20	315	19	25	M36*2	18	109	60	48	75	24	54	12	12	56
KHB3K-30SR	25	315	25	30	M42*2	20	120	65	55	82	28.5	61	12	12	60
KHB3K-38SR	25/32	315	25	38	M52*2	22	124	65	60	82	28.5	64	12	14	62

Metric Femal Thread

Model	DN	PN	LW	d1	i	L	L1	B	H	h1	h2	h3	SW1	S
KHB3K-N-M14*1.5	6	315	6	M14*1.5	14	69	37	28	44.5	13	32	8	9	35
KHB3K-N-M18*1.5	10	315	10	M18*1.5	13	72	42	32	52.5	17	40	8	9	36
KHB3K-N-M22*1.5-SW9	13	315	13	M22*1.5	15	83	48	35	52.5	17	40	8	9	40
KHB3K-N-M27*2	20	315	20	M27*2	18	95	60	48	75	24	57	12	14	49
KHB3K-N-M33*2	25	315	25	M33*2	20	113	65	57	82	28.5	64	12	14	56.5
KHB3K-N-M42*2	32	315	30	M42*2	22	110	84	75	104.5	37.5	84	14	17	55
KHB3K-N-M48*2	40	315	38	M48*2	24	130	91	85	115.5	42.5	95	14	17	65
KHB3K-N-M60*2	50	315	48	M60*2	26	140	100	105	133	52.5	112.5	14	17	75

ISO7-1 Female Thread

Model	DN	PN	LW	d1	i	L	L1	B	H	h1	h2	h3	SW1	S
KHB3K-1/8BSPT	4	315	6	Rc1/8	11	69	37	28	44.5	13	32	8	9	35
KHB3K-1/4BSPT	6	315	6	Rc1/4	14	69	37	28	44.5	13	32	8	9	35
KHB3K-3/8BSPT	10	315	10	Rc3/8	14	72	42	32	52.5	17	40	8	9	36
KHB3K-1/2BSPT	13	315	13	Rc1/2	17	83	48	35	52.5	17	40	8	9	40
KHB3K-3/4BSPT	20	315	20	Rc3/4	19	95	60	48	75	24	57	12	14	49
KHB3K-1BSPT	25	315	25	Rc1	22.5	113	65	57	82	28.5	64	12	14	56.5
KHB3K-1 1/4BSPT	25/32	315	25	Rc1 1/4	22.5	120	65	60	82	28.5	64	12	14	60
