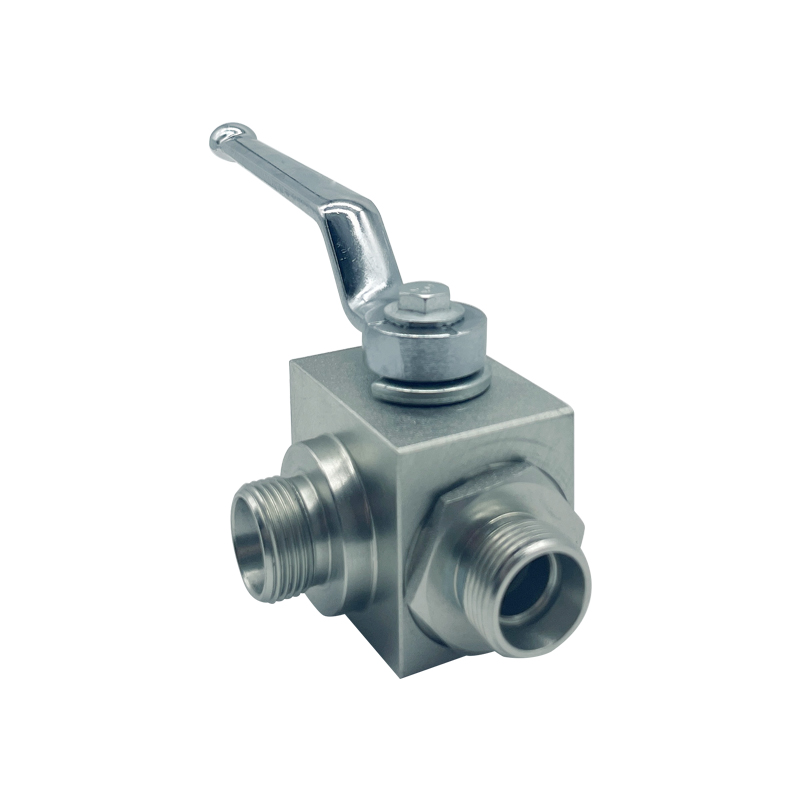

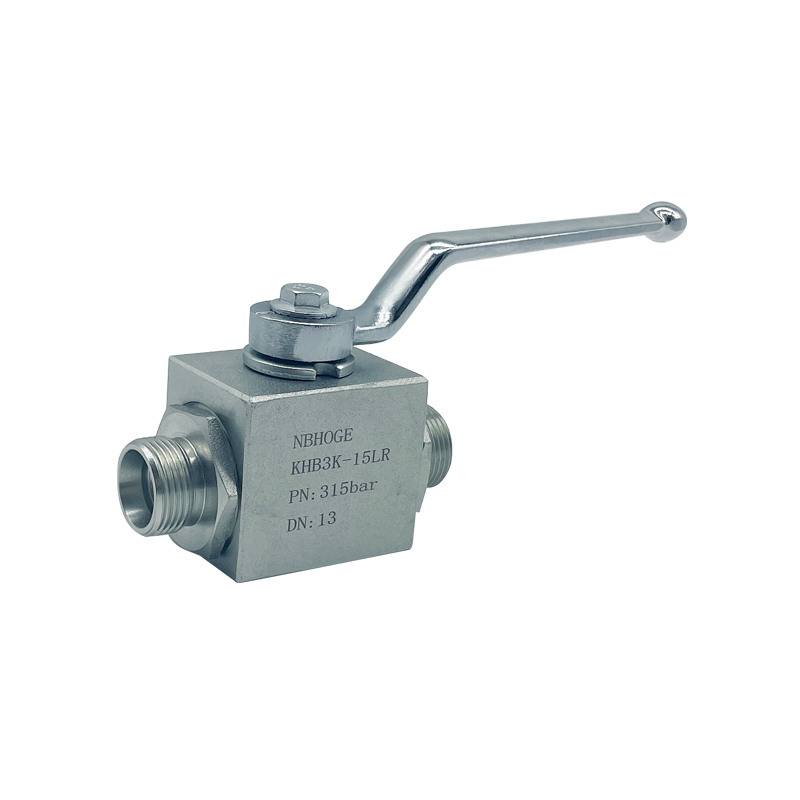

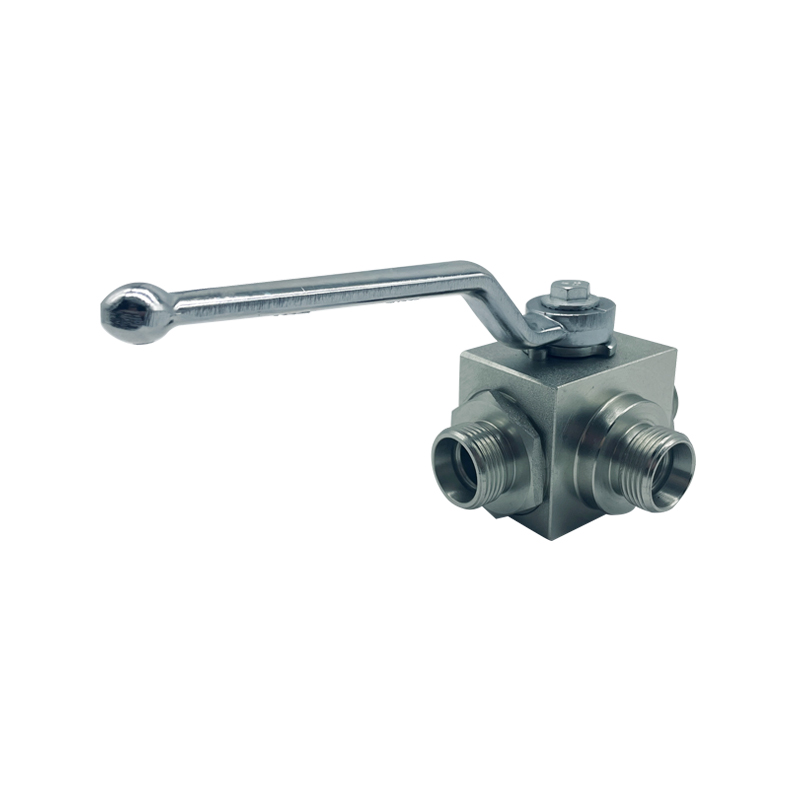

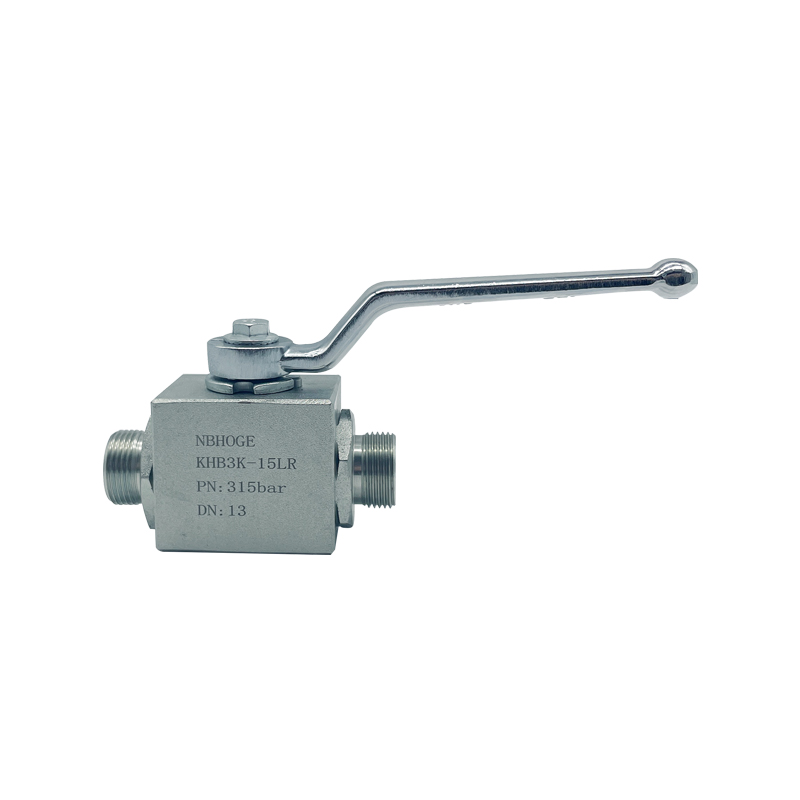

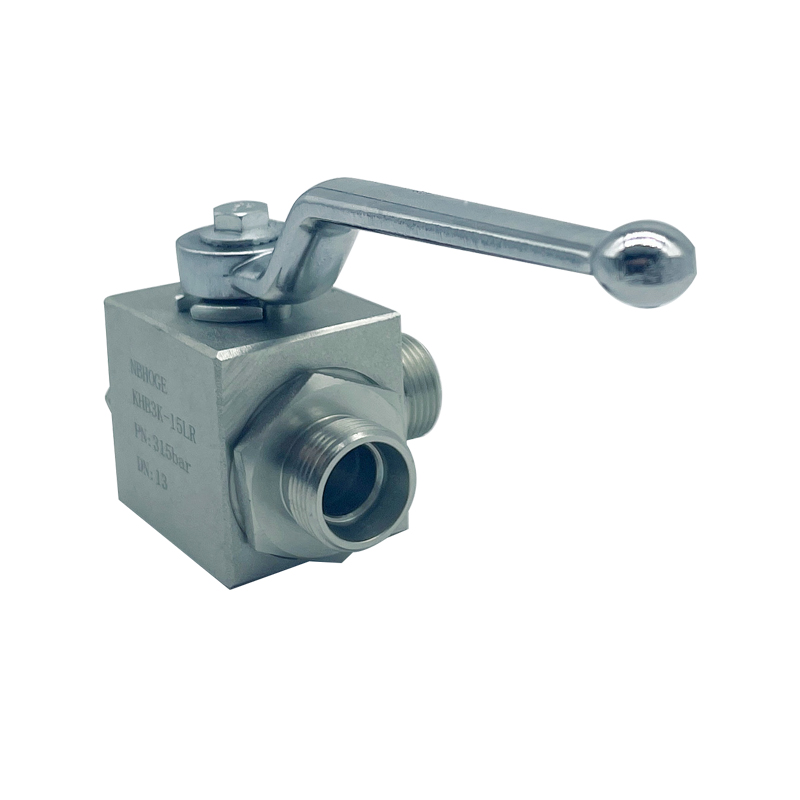

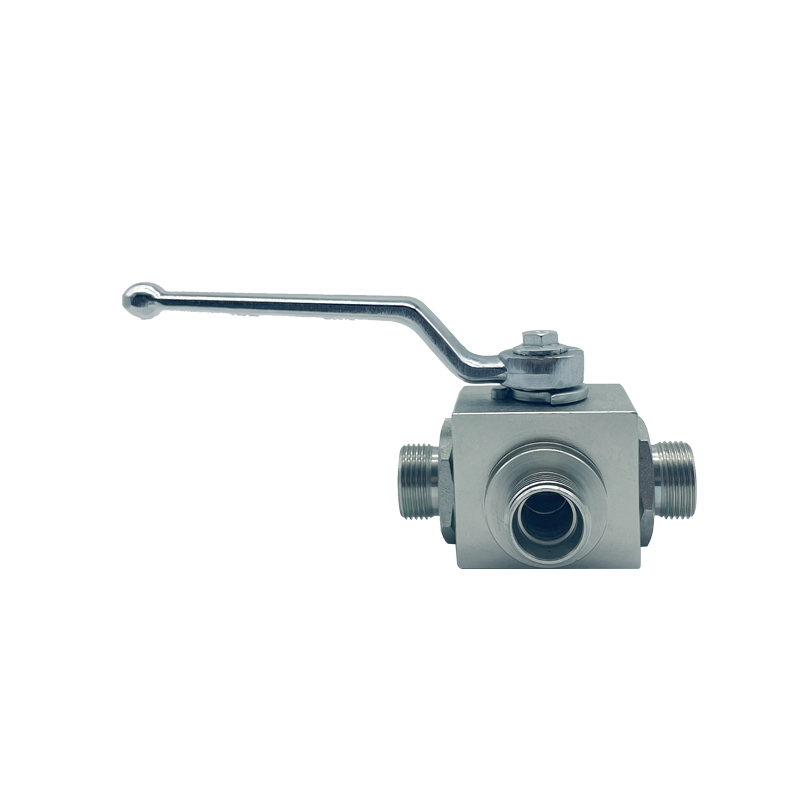

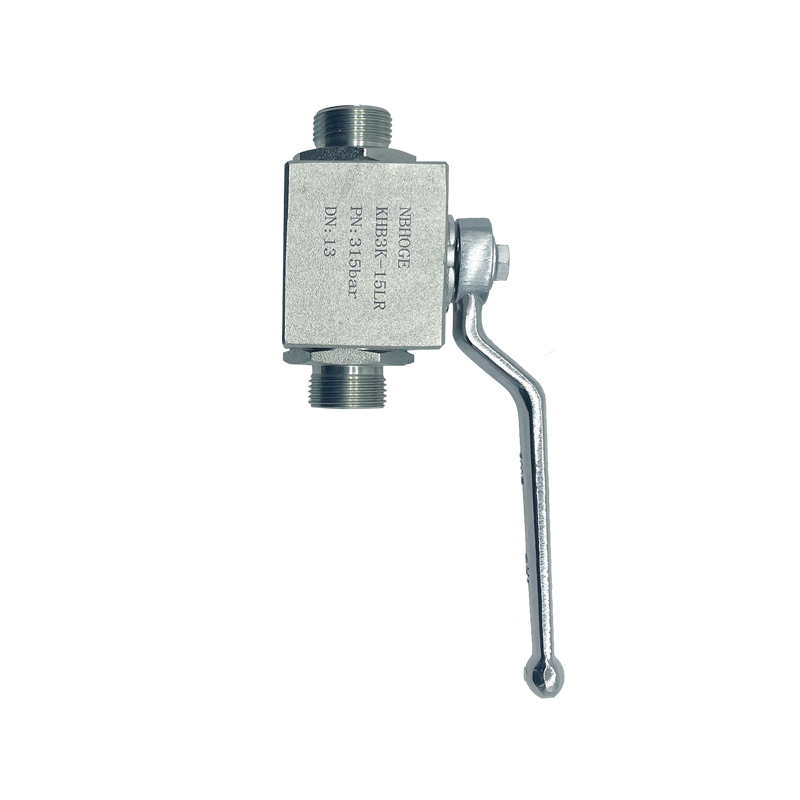

KHB3K-LR DIN2353LIGHT MALE-khb3k lr

Features

Model	DN	PN	LW	RA	d1	i	L	L1	B	H	h1	h2	h3	SW1	S
KHB3K-06LR	4	315	4	6	M12x1.25	10	67	37	28	44.5	13	32	8	9	34.5
KHB3K-08LR	6	315	6	8	M14x1.5	10	67	37	28	44.5	13	32	8	9	34.5
KHB3K-10LR	8	315	8	10	M16x1.5	11	74	42	32	52.5	17	40	8	9	37
KHB3K-12LR	10	315	10	12	M18x1.5	11	74	42	32	52.5	17	40	8	9	37
KHB3K-15LR	13	315	13	15	M22x1.5	12	82	48	37	52.5	17	43	8	9	40
KHB3K-18LR	13	315	13	18	M26x1.5	12	82	48	37	52.5	17	43	8	9	42
KHB3K-18LR	16	315	15	18	M26x1.5	12	82	47	38	63.5	19	46	11	9	42
KHB3K-22LR	20	315	19	22	M30x2	14	101	60	48	75	24	54	12	12	52
KHB3K-28LR	25	315	25	28	M36x2	14	108	65	55	82	28.5	61	12	12	54
KHB3K-35LR	25/32	315	25	35	M45x2	16	112	65	60	82	28.5	64	12	14	56
