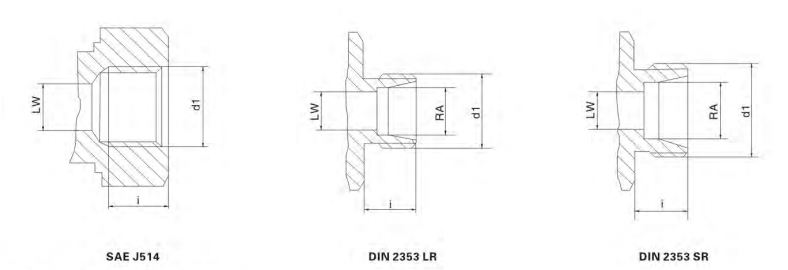

KHB,KHM-LR DIN2353 LIGHT MALE-khb lr Perforated

Features

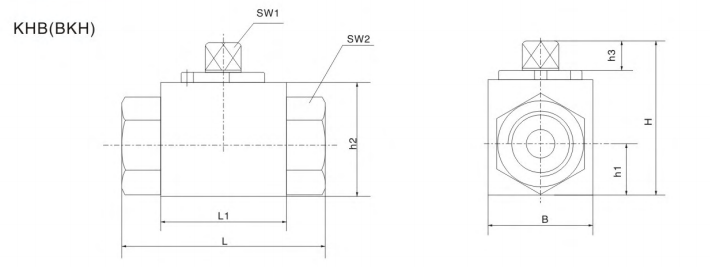

Model	DN	PN	LW	RA	d1	i	L	L1	B	H	h1	h2	h3	SW1	SW2
KHB-06LR	4	500	4	6	M12x1.25	10	67	37	28	44.5	13	32	8	9	24
KHB-08LR	6	500	6	8	M14x1.5	10	67	37	28	44.5	13	32	8	9	24
KHB-10LR	8	500	8	10	M16x1.5	11	74	42	32	52.5	17	40	8	9	27
KHB-12LR	10	500	10	12	M18x1.5	11	74	42	32	52.5	17	40	8	9	27
KHB-15LR	13	500	13	15	M22x1.5	12	82	48	35	52.5	17	40	8	9	32
KHB-15LR	16	400	13	15	M22x1.5	12	82	47	38	63.5	19	46	11	9	32
KHB-18LR	13	500	13	18	M26x1.5	12	82	48	35	52.5	17	40	8	9	32
KHB-18LR	16	400	15	18	M26x1.5	12	82	47	38	63.5	19	46	11	12	32
KHB-22LR	20	315	19	22	M30x2	14	101	60	48	75	24	57	12	12	41
KHB-28LR	25	315		28	M36x2		108	65	57	82	28.5	64	12	12	46
KHB-35LR	25/32	315	25	35	M45x2	16	112	65	60	82	28.5	64	12	14	46
KHM-35LR	32	315	30	35	M45x2	16	141	84	82	108	41	87.5	14	14	60
KHM-42LR	40	315	38	42	M52x2	16	162	91	93	119.5	46.5	99	14	17	70
