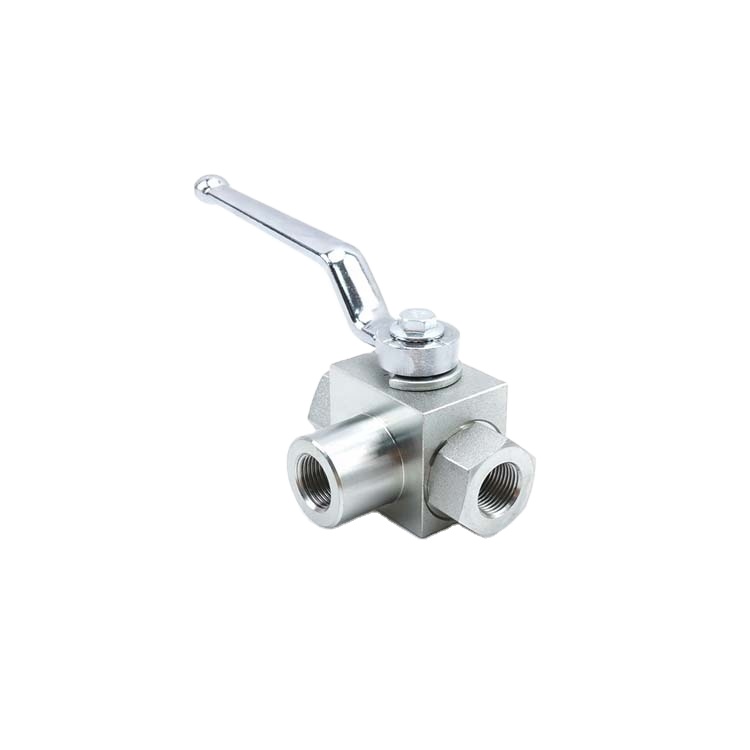

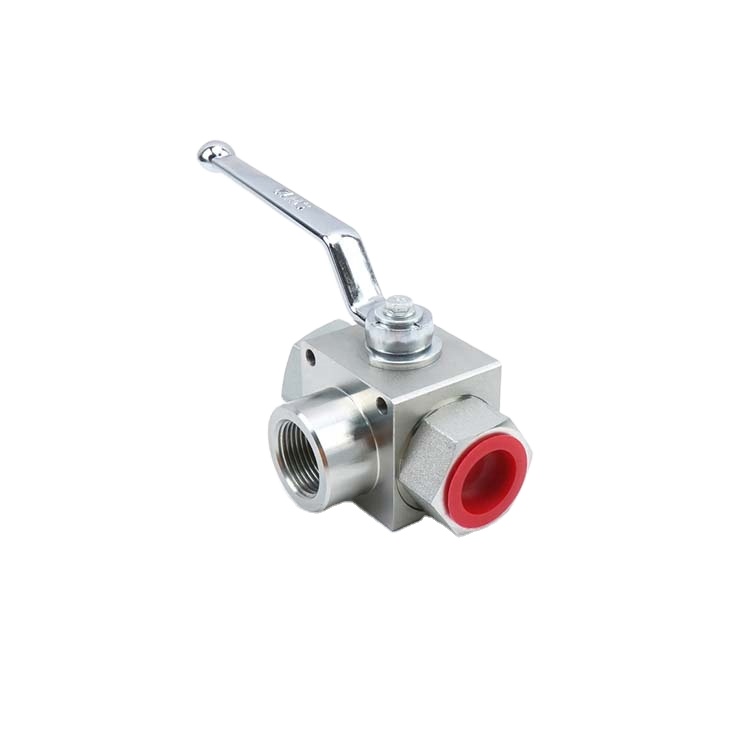

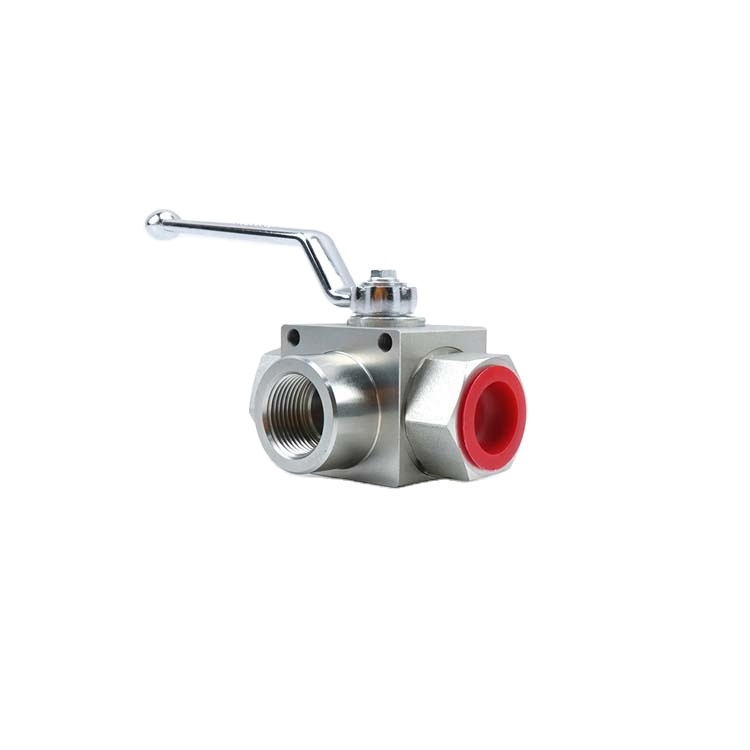

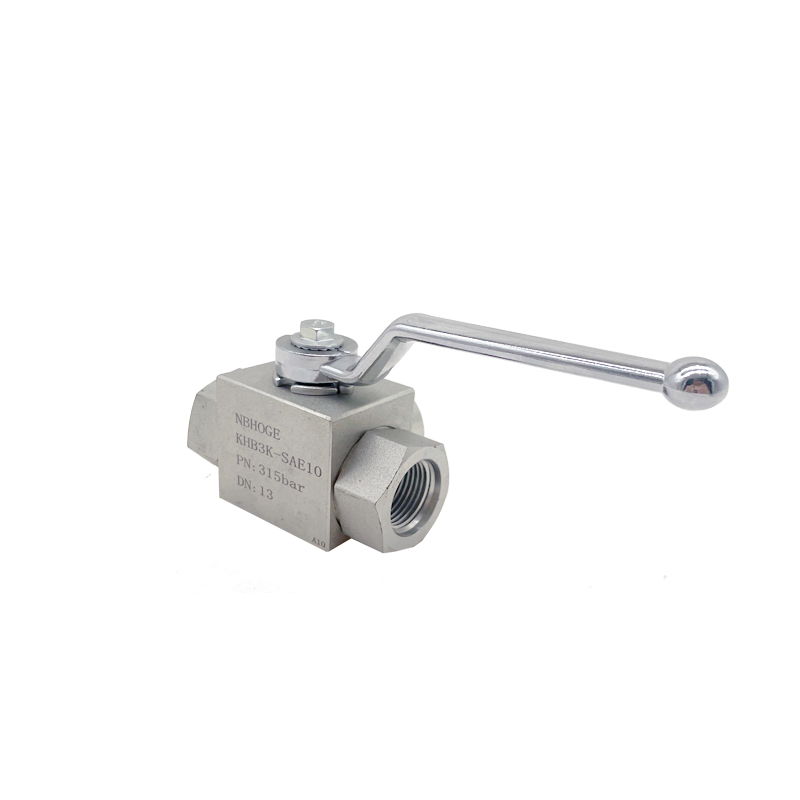

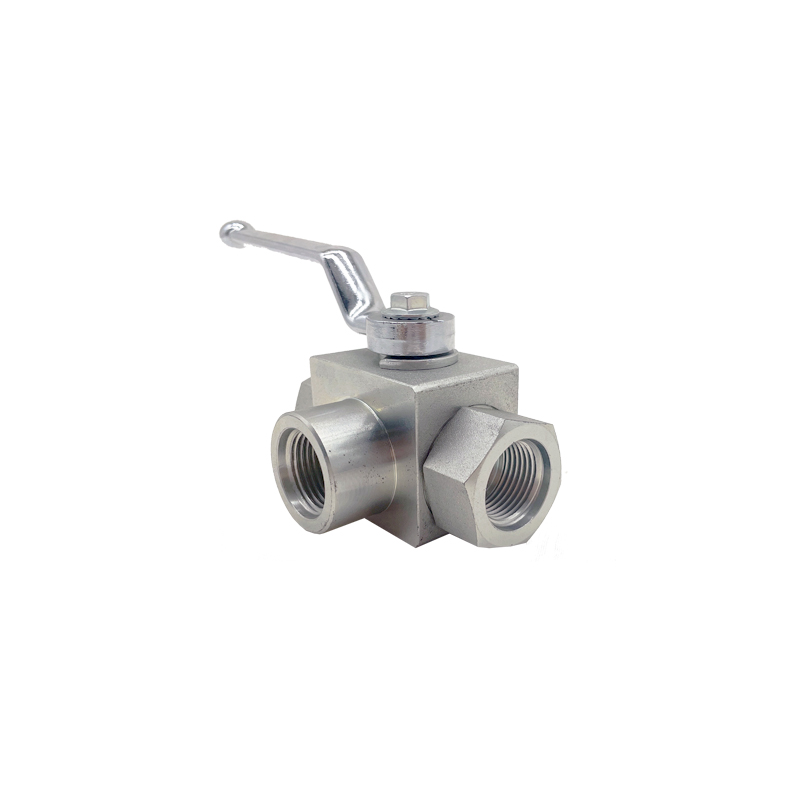

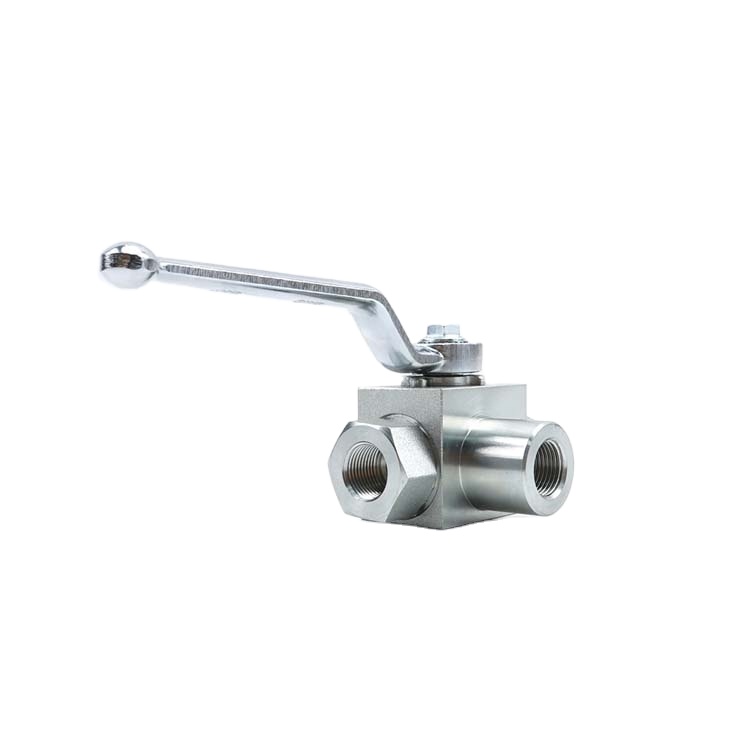

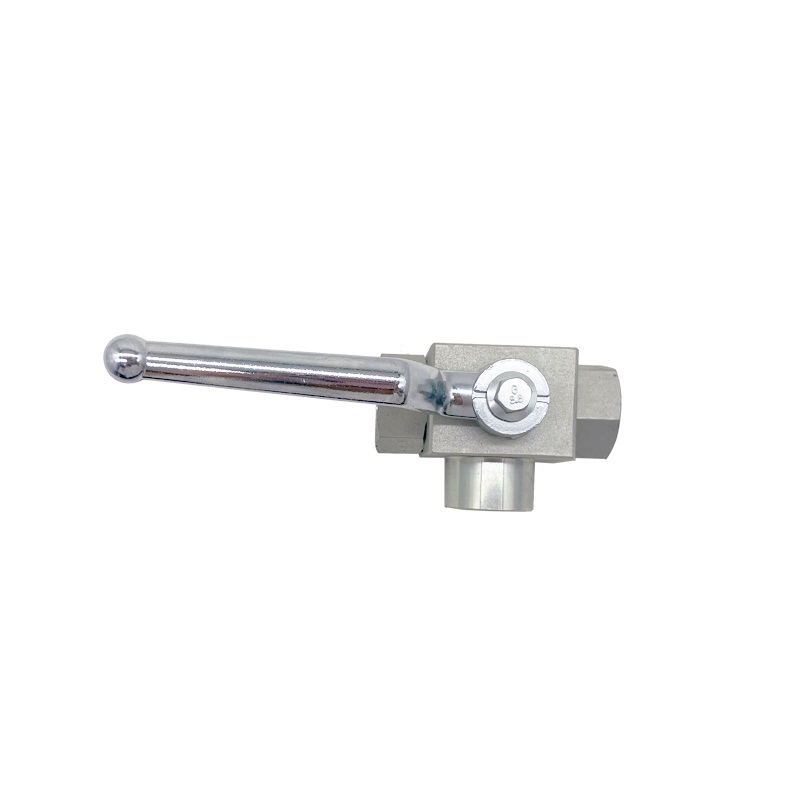

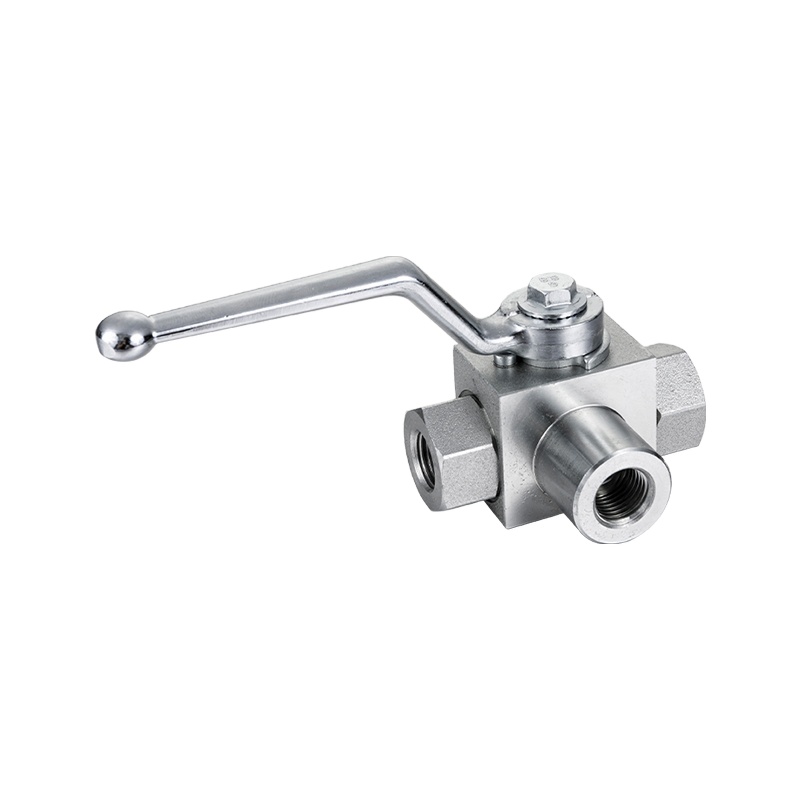

KHB3K-SAE J514 UN,UNF FEMALE-khb3k sae No hole

Features

SAE J 514 UN/UNF Female

Model	DN	PN	LW	d1	i	L	L1	B	H	h1	h2	h3	SW1	S
KHB3K-SAE4	6	315	6	SAE4	12	69	37	28	44.5	13	34	8	9	35
KHB3K-SAE6	10	315	10	SAE6	13	72	42	32	52.5	17	40	8	9	36
KHB3K-SAE8	13	315	13	SAE8	15	83	48	37	52.5	17	40	8	9	40
KHB3K-SAE12	20	315	20	SAE 12	20	95	60	48	75	24	54	12	12	49
KHB3K-SAE16	25	315	25	SAE16	20	113	65	55	82	28.5	61	12	12	56.5
KHB3K-SAE20	25/32	315	25	SAE20	20	120	65	60	82	28.5	61	12	12	60
KHB3K-SAE20	32	315	30	SAE20	20	120	84	75	104.5	37.5	84	14	14	60
KHB3K-SAE24	40	315	38	SAE24	20	130	91	85	115.5	42.5	95	14	17	70
KHB3K-SAE32	50	315	48	SAE32	20	140	100	105	133	52.5	112.5	14	17	75

Quote Now

Specification

Ningbo Hongge Hydraulic Co.,Ltd

Ningbo Hongge Hydraulic Co.,Ltd is a professional supplier of industrial products. The company was established in 2014 and is located in Xikou Industrial Park, Fenghua District, Ningbo City. It is a professional enterprise integrating R&D, manufacturing, sales and service of hydraulic ball valve products. , Has a wealth of application experience and actual performance, has been introducing solutions from well-known foreign manufacturers for many years, providing customers with reliable solutions, seeking reliable products, and according to customer needs, cooperating with foreign countries to develop various custom KHB3K-SAE J514 UN,UNF FEMALE-khb3k sae No hole to improve the quality of ball valves .

As a famous China KHB3K-SAE J514 UN,UNF FEMALE-khb3k sae No hole Suppliers and custom KHB3K-SAE J514 UN,UNF FEMALE-khb3k sae No hole company, Our company's business scope includes: hydraulic components, high-pressure ball valves, KHB3K-SAE J514 UN,UNF FEMALE-khb3k sae No hole, hydraulic ball valves, international standard high-pressure ball valves, high-pressure stop valve series, etc. and hydraulic system accessories, and provide engineering machinery, metallurgy, mining, petroleum, wind power, ships, military, Practitioners in agriculture and other industries provide high-quality hydraulic ball valves and professional consulting services, so they are widely recognized and praised by customers.
