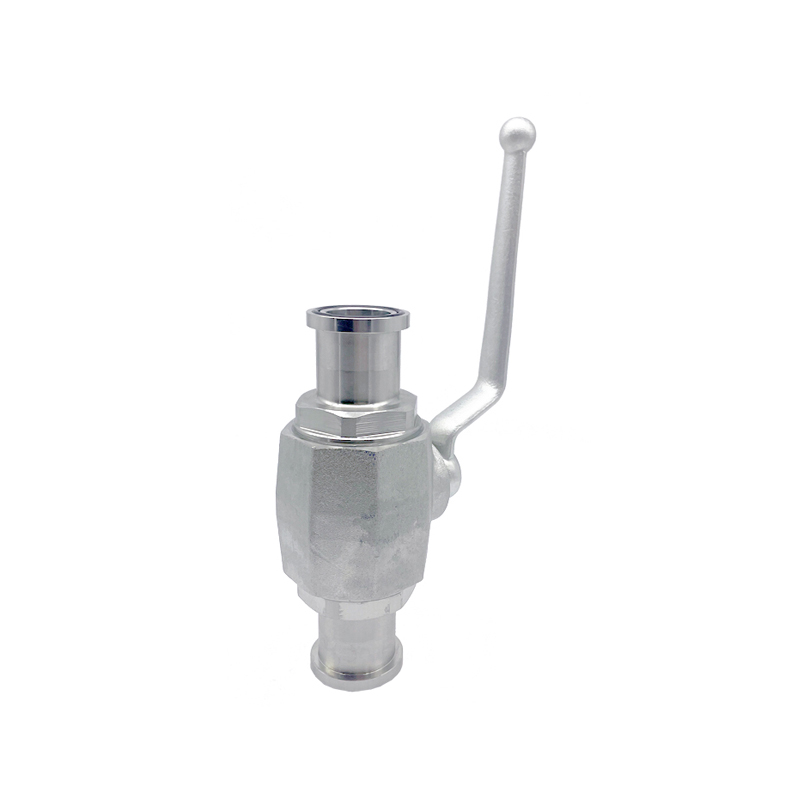

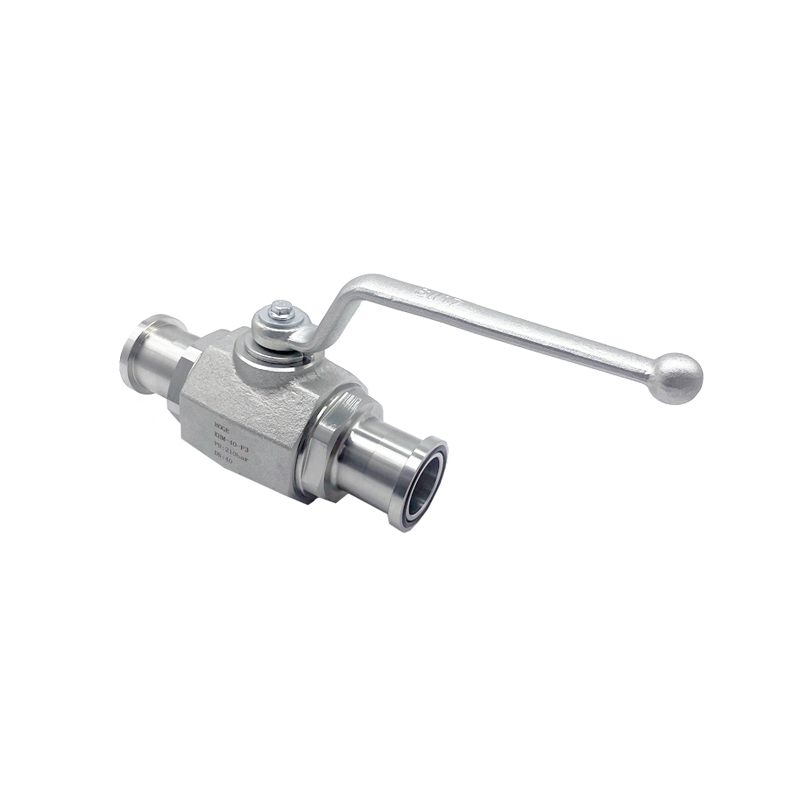

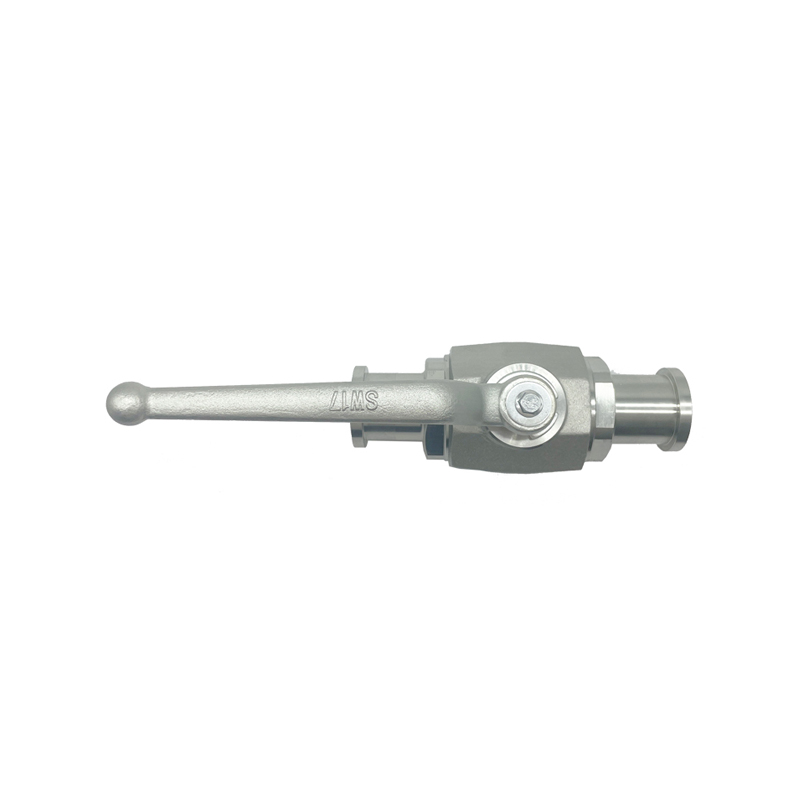

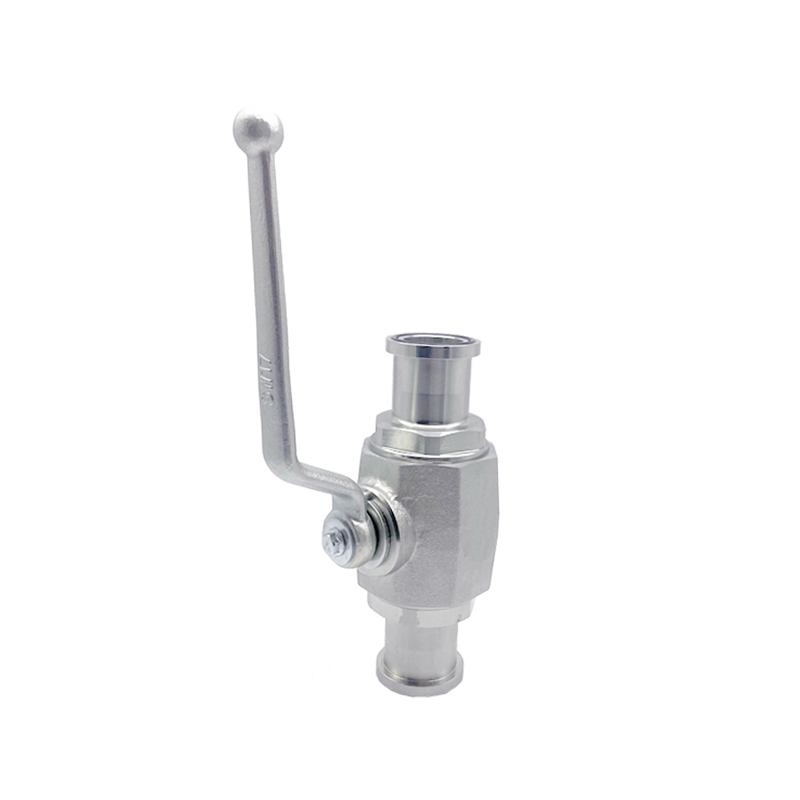

KHB,KHM F3,6 SAE flange-khm- f

Features

KHB/KHM-F6

Model	SAE		DN		PN	LW		L	L1		H	h1		h2	h3		B
KHB-166	3/4"		16		400	15		170	47		63.5	19		46	11		38
KHB-20-F6	3/4"		20		350	19		170	60		75	24		54	12		48
KHB-25-F6	1-		25		350	25		198.5	65		82	28.5		64	12		57
KHM-32-F6	174		32		350	30		223	84		104.5	37.5		84	14		75
KHM-40-F6	172		40		350	38		281	91		115.5	42.5		95	14		85
KHM-50-F6	2"		50		350	48		315	\|100		133	52.5		112.5	14		105
Model		b1		d1			62			SW1			SW2			Ring
KHB-16-F6		8.8		41.3			32			12			32			24.99x3.53
KHB-20-F6		8.8		41.3			32			14			41			24.99x3.53
KHB-25-F6		9.5		47.6			38			14			50			32.92x3.53
KHM-32-F6		10.3		54			44			17			60			37.69x3.53
KHM-40-F6		12.6		63.5			51			17			70			47.22 x 3.53
KHM-50-F6		12.6		79.4			67			17			80			56.74x3.53

SAE法兰-F6

Model	A	C	D	E	F	M	K	I	G	d
KHB-16-F6	42	32.5	19	28	8.2	29	11	50.8	72	10.5
KHB-20-F6	42	32.5	19	28	8.2	29	11	50.8	72	10-5
KHB-25-F6	48.4	38.9	24	33	9	33.8	13	57.2	81	13
KHM-32-F6	54.8	44.5	27	38	9.8	37.6	15	66.6	96	15
KHM-40-F6	64.3	51.6	30	43	12	46.5	17	79.3	113	17
KHM-50-F6	80.2	67.6	37	52	12	55.9	21	96.8	134	21
