Working Principle Of Electric Actuator High Pressure Ball Valve
2023-01-13,14:54:35

Working Principle

Electric ball valve is composed of two or three way high pressure ball valve and electric actuator combination. The ball valve stem is driven by an electric actuator to perform a 0-90 degree rotary mechanical action, and it only needs to rotate 90 degrees and a small rotational torque to achieve tight closing. Among them, the cock body of the ball valve is spherical, with a circular through hole or channel passing through its axis.

Electric ball valves are mainly used in industrial automatic control pipelines for the process of cutting, distributing and changing the flow direction of media. It only needs to rotate 90 degrees and a small torque to close tightly. Electric ball valves are most suitable for use as switch and cut-off valves. It can also be used to fluid regulation and control, is an industrial automation process control of a pipe pressure element.

Varieties Of Connection To Choose

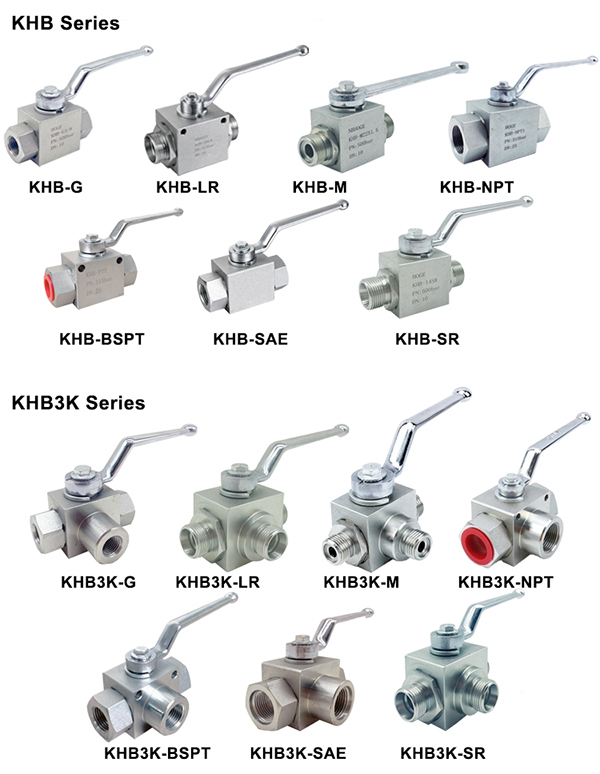

There are several types available for high pressure ball valves under the actuator. For example KHB/KHM series high pressure hydraulic, KHB3K high pressure hydraulic ball valve. In addition to above mentioned coventional two ways or three ways high pressure ball valves, other can also be universal, such as flange ball valve series, etc. .
